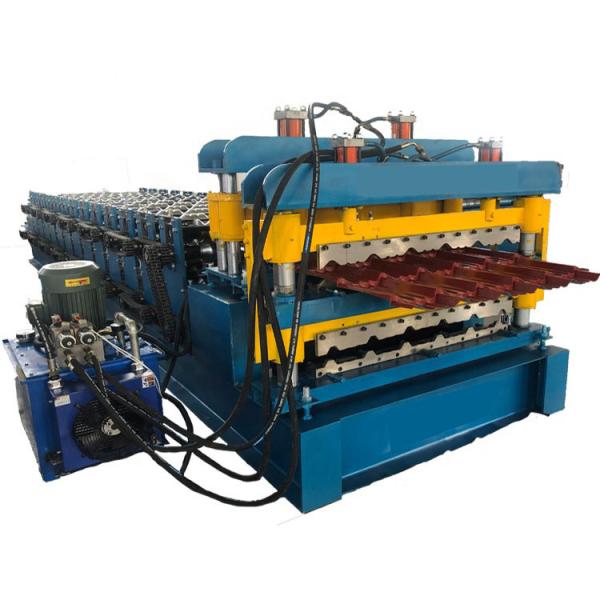

Double Layer Tile Roll Forming Machine 0.3-0.8mm Thickness 12m/min

High Speed Double Layer Tile Roll Forming Machine

Double layer metal tile/panel roll forming machine can produce two different kinds of tile/panel with one machine,you can choose any two kinds of roofing tile/panel ,it can save a lot of room and money.metal roof tile/panel is widely used in constructions and buildings,it can be uesd to build roof and wall.This kind of material can be used in many places such as gyms,warehouses,factories,etc.

Equipment Detailed Parameters:

1	Suitable Material	PPGI (235Mpa)
2	roller material	45# steel plated with chrome
3	Rows of rollers	15 rows & 16 rows
4	Way of drive	chaindrive,Gearbox drive(optional)
5	Product automatic stacker	6m length
6	Feeding width	1220mm
7	Production Capacity	12 m/min
8	Rolling thinckness	0.3-0.8m
9	Diameter of shaft	￠75mm
10	Voltage	380V 50Hz 3phases
11	main motor power	5.5kw
12	hydraulic station power	4kw

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
