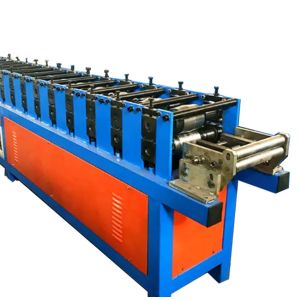

Metal Palisade Fence Roll Forming Making Machine PLC Control

    Buy cheap Metal Palisade Fence Roll Forming Making Machine PLC Control from wholesalers

    Buy cheap Metal Palisade Fence Roll Forming Making Machine PLC Control from wholesalers
    • Buy cheap Metal Palisade Fence Roll Forming Making Machine PLC Control from wholesalers
    • Buy cheap Metal Palisade Fence Roll Forming Making Machine PLC Control from wholesalers
    • Buy cheap Metal Palisade Fence Roll Forming Making Machine PLC Control from wholesalers

    Metal Palisade Fence Roll Forming Making Machine PLC Control

    Ask Lasest Price
    Brand Name : CANGZHOU FMS
    Model Number : Sleflock
    Certification : ISO CE
    Price : Negotiable
    Payment Terms : L/C, T/T, D/A, D/P
    Supply Ability : 20 Sets Per Month
    Delivery Time : 30 Working Days
    • Product Details
    • Company Profile

    Metal Palisade Fence Roll Forming Making Machine PLC Control

    Metal Palisade Fence Roll Forming Making Machine Picket Fence​


    About Metal Palisade Fence Roll Forming Making Machine Picket Fence:

    Our Fence Roll Forming Machine for different models based on different designs or customer's samples . It is a new building material, the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center.It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.

    Specification

    No.
    Metal Palisade Fence Roll Forming Making Machine
    1
    Suitable to process
    Color alu-zinc steel strips
    2
    Roller
    15 Rows plus leveling device
    3
    Dimensions
    5.8*1*1.5m
    4
    Motor Power
    3Kw
    5
    Pump Station Motor
    4Kw.Lichao Brand
    6
    Thickness of the plate
    0.3-0.8mm
    7
    Productivity
    10-15m/min
    8
    Material of the cutting blade
    Cr12,Quenched treatment 58℃-60℃
    9
    Diameter of the roller
    Φ70mm
    10
    Weight
    About 3000kg
    11
    Main structure of the machine
    Square steel frame
    12
    Processing precision
    Within 1.0mm
    13
    Side panel of machine
    16mm
    14
    Chain Wheel and Cycle Chain
    1 Inch
    15
    Voltage
    380V 50Hz 3phases or as customer's need
    16
    Control system
    PLC control (Delta)
    17
    Frequency system
    Delta
    18
    Drive mode
    Gear driver
    19
    Touch screen
    Delta
    20
    Rolling materials
    45# forging steel with chromium plate
    21
    Length Tolerance
    ±2mm


    Application


    selflock color steel has been specially processed, with strong anti -external power capacity, beautiful and solid external nature, and it is more appropriate to make wall panels and layers. By adjusting the freedom side, it can also be completely separated by rain.


    Payment terms

    40% in advance as advance payment
    60% is paid before the shipment is processed

    Delivery

    FOB: Tianjin Xingang Port or CNF
    The Delivery Time: 30 days after the down payment is received.
