    Omega Profile Roll Forming Machine Omega Channel Roll Forming Machine

    Ask Lasest Price
    Brand Name : CANGZHOU FMS
    Certification : ISO CE
    Price : Negotiable
    Payment Terms : L/C, T/T, D/A, D/P
    Supply Ability : 20 Sets Per Month
    Delivery Time : 30 Working Days
    • Product Details
    • Company Profile

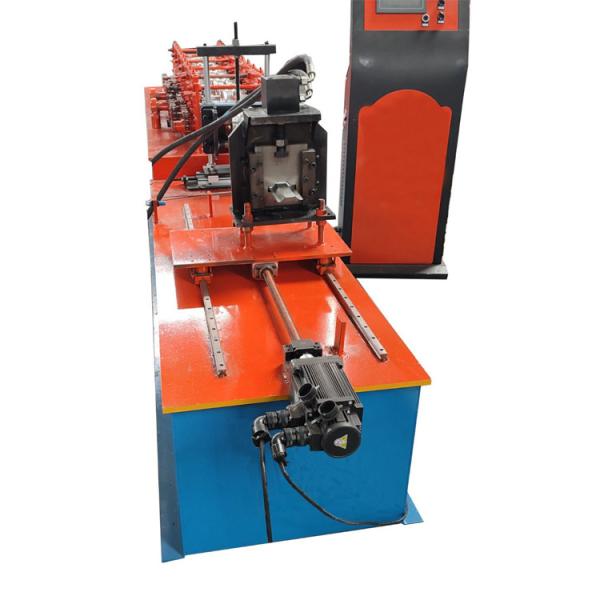

    Omega Profile Roll Forming Machine Omega Channel Roll Forming Machine

    Omega Profile Roll Forming Machine Omega Channel Roll Forming Machine


    Omega channel/furring channel type widely used in hotels, terminals, train stations, stations, playgrounds, shopping malls, factories, office buildings, old building,renovation, interior decoration settings, ceilings,etc. the Omega furring channel raw material thickness 0.3-1.0mm, the raw
    material is galvanized sheet , the machine is non-stop cutting ,speed 20-40m/minute, we also can make machine as your requirement.


    Specification

    Article No.Item NameSpecification
    1Width of feeding materialAs the tile profile
    2Thickness of feeding material0.3-0.8 mm coil sheet
    3Roller station10 stations
    4Shaft Diameter60 mm
    5Productivity20-55 m/min
    6Rollers' material45# steel with 0.05mm chrome
    7Shaft material45# steel with 0.05mm chrome
    8Weight1.6 tons
    9Size5*0.8*0.9m
    10Voltage380V 50Hz 3phases
    11ControlPLC
    12Decoiler3 tons
    13Motor4 kw
    14Driving wayChain transmission
    15Chain size1.2 inch
    16Cutting systemHydraulic cutter

    Guarantee

    1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
    2. Repairs will not be performed even during the guarantee period in the follow circumstances

    - Damage occurs due to a natural disaster

    - Malfunction occurs due to user error

    - Malfunction occurs due to modifications

    - Malfunction occurs due to further movement or shipment after installation

    Payment terms

    40% in advance as down payment
    60% is paid before the shipment is processed

    Delivery

    FOB: Tianjin Xingang Port
    The Delivery Time: 30 days after the down payment is received.
