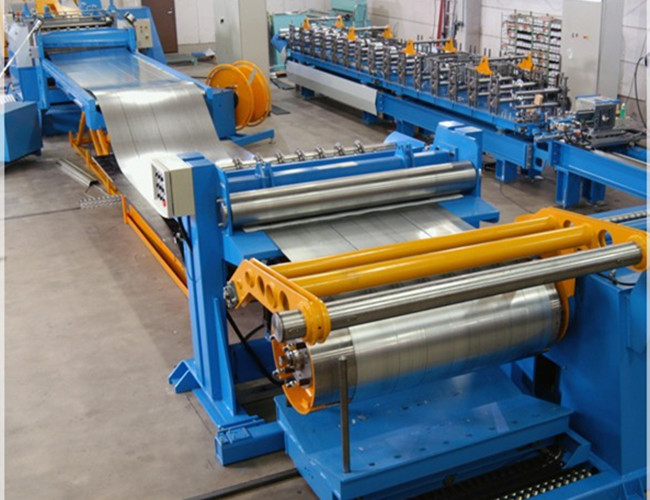

PPGI Heavy Duty Decoiler Steel Coil Slitting Line Machines

Teel Coil Slitting Machines Heavy Duty Decoiler Slitting Line Machines

Teel Coil Slitting Machines Heavy Duty Decoiler Slitting Line Machines :
Roll slitting machine is a length ways cutting production line, for cutting metal sheet strip. roll slitting machine can uncoil metal sheet strip coil, then slit(cut) the metal sheet strip longitudinal, then rewind the slitted metal sheet strips, for getting narrow metal sheet strip coils.roll slitting machine is for metal sheet strip coil cutting service center, press machine stamping punching, metal sheet strip processing,etc.

Specification

Technical Parameters of Sliting Machinery
1. Specifications:
b. Tensile strength	b≤500Mpa, S≤300Mpa
c. Thickness	0.5-2.0mm
d. Width	500-1600(Max) or customized
e. Coil I.D.	508mm
f. Coil O.D.	1600mm(Max)
g. Weight	15T(Max) or customized
h. Diameter of leveling rollers	65mm
i. Distance of leveling rollers	70mm
j. Material of leveling rollers	GCr15, hardness: HRC 55-60
k. Total weight of machines	around 30T
2. Finished products parameters
a. Diagonal tolerance	≤±1mm/2000mm
b. Length tolerance	≤±0.5mm/2000mm
3. Other parameters
a. Power	380V/50Hz/3Ph or customized
b. Line speed	0-60m/min or customized
c. Capacity	around 100kW
d. Area of the whole production line	(about) 25m(L)×7m(W)

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 20 days after the down payment is received.
