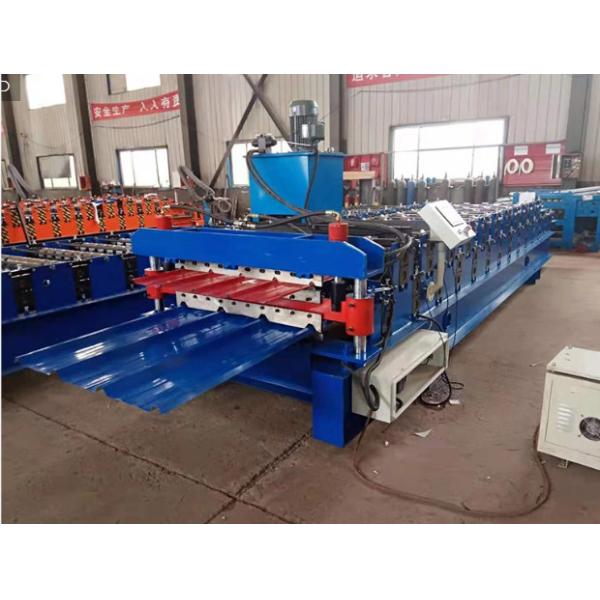

Galvalume Tr4 Tr5 Double Layer Roll Forming Machine Roofing Trapezoidal

Tr4 Tr5 Roofing Trapezoidal Roll Forming Machine For The Americas Market

New Design Double Layer TR 4 TR 5 Roofing Metal Sheet Galvanized Steel Trapezoidal I B R Profile Cold Roll Forming Making Machine For The South American Market

1. Components:
1. Decoiler
2. Coil sheet guiding and adjusting equipment
3. Film covered device(optional)
4. Main roll forming system
5. Hydraulic pump station
6. PLC control system
7. Cutting device
8. Run-out table
2. Work flow:
Decoiling the sheet----sheet guilding----film covering(option)----roll forming----PLC controlling----hydraulic cutting----receiving the finished panel

Specification

No.	Tr4 Tr5 Roofing Trapezoidal Roll Forming Machine For The Americas Market
1	Suitable to process	Galvanized/Aluminum/Color steel sheet
2	Width of plate	1250mm
3	Thickness of plate	0.3-0.8mm
4	Rollers	High grade 45# steel, with hard chrome plating
5	Forming steps	16
6	Sprocket chain	1.5 inch
7	Pump station power	4kw
8	Shaft	75mm, high grade 45# steel, heat treatment
9	Hydraulic oil pump	CB-E310
10	Weight	About 5.0 tons
11	Productivity	8-12m/min
12	Cutting head	Cr12 mould steel with quenched treatment
13	Control system	TAIDA brand PLC control
14	Voltage	380V 3Phase 60Hz
15	Motor power	4kw
16	Dimension	About 6.8m1.5m1.5m
17	Hydraulic pressure	10-12mpa
18	Index error of length	±1mm
19	The temperature range of working line	-35-50°

Guarantee

1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
