0.3mm Custom Roll Forming Machine Metal Tile Panel Roof Sheet Making

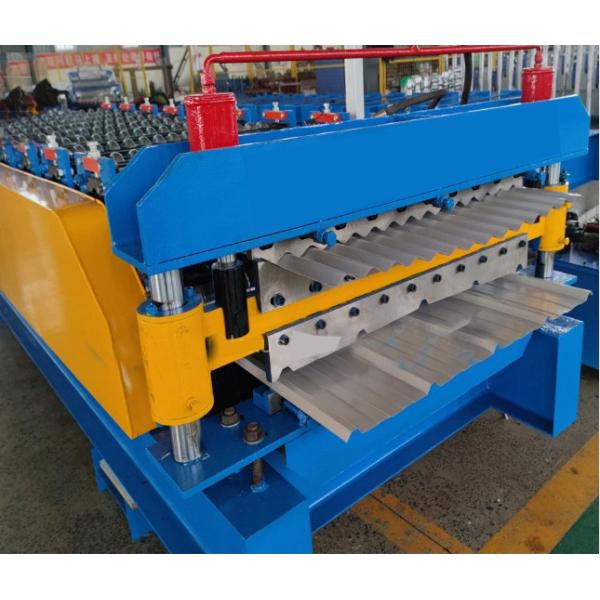

Metal Double Layer Tile Panel Roll Forming Machine Roof Sheet Making Machine

Metal Double Layer Tile Panel Roll Forming Machine Roof Sheet Making Machine is one most popular type of roll forming machines. It makes different shape of color steel roof sheet, which is used for buildings, factory, supermarket ect. For this machine, it suit coil width is 1000mm, thickness range is from 0.3mm to 0.8mm. We adopt 16mm side wall panel type to make machine frame strong. Usually it can run with the max speed to 15m/min, PLC with touch screen operation make the machine simple and easy for usage.

Specification

IBR Roofing Sheet Iron Steel Corrugated Roof Sheeting Metal Double Layer Tile Panel Roll Forming Machine
Main motor power	5.5 kw
Drive	1'' single chain
Type:	Wall board
Main shaft dia	¢70mm
material	45# forge steel and quenched
Roller material	45# high grade forge steel ,chrome coated 0.05mm
Roll station	9 groups for corrugated sheet and 11 groups for IBR sheet
Raw material	0.3-0.8mm
Coil width	1000mm
Working speed	10m--15m/min(Exclude cutting time)
Length Tolerance	±1.5mm
Weight of machine	About 6 ton
Size of machine	About 6500×1800×1500mm L x W x H
Color of machine	Yellow and Blue
Coder	Omron, made in Japan
Control	PLC Panasonic, made in Japan. (Also depend on client)
Computer operating panel	touching screen
Cutting	Hydraulic cutting. Auto cutting when reach the set length
Hydraulic power	3KW
Blade material	Cr12mov,quenched 58°-62°
Working pressure	16mpa
Cutting tolerance	+/- 1.0mm

Guarantee

1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
