3ph Color Steel 0.25mm Double Layer Roll Forming Machine Glazed Tile And Corrugated

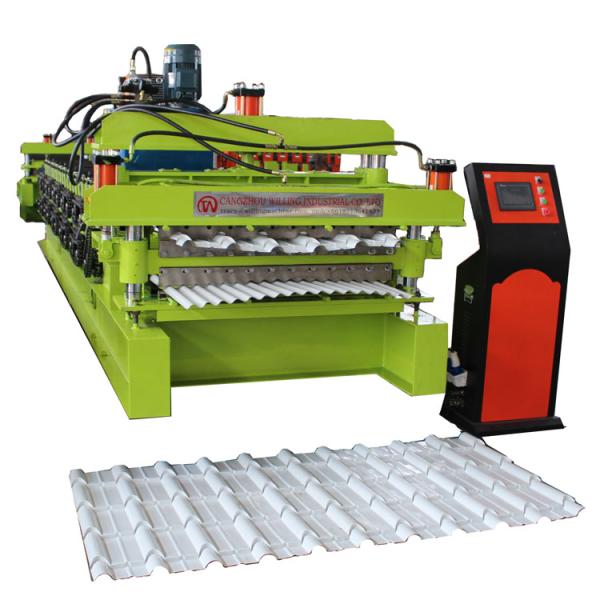

Double Layer Color Steel Roll Forming Machine Glazed Tile And Corrugated

The double-layer roof roll forming machine can make glazed and corrugated type in one machine, which can save more space and money than using two different machines.

Equipment Detailed Parameters:

1	Suitable Material	PPGI (235Mpa)
2	Width of the raw material	1250mm
3	Rows of rollers	15 rows & 16 rows
4	Dimension	730015501200mm
5	Main servo	7.5kw
6	Hydraulic station power	11kw
7	Thickness of raw material	0.25-0.8mm
8	Productivity	8-15m/min
9	Diameter of shaft	￠75mm
10	Voltage	380V 50Hz 3phases
11	Frame	350H steel
112	Middle plate	16mm

Application

The double-layer tile machine is economical and can combine two types of equipment into one. In other words, it saves floor space, and the equipment cost of a double-layer tile machine is much lower than that of two single-layer machines. The plate rolled by this machine has the characteristics of flatness, uniform corrugation and high utilization rate.

Advantage

Double-layer tile machine equipment adopts PLC control system. The operation is simple and easy to use. The double-layer laminated tile machine adopts advanced automatic control software. Realize production information management. In order to make the performance of the automation system more superior, the color steel tile equipment also has the advantages of maintenance, maintenance, mechanical debugging, and convenient mold replacement.
