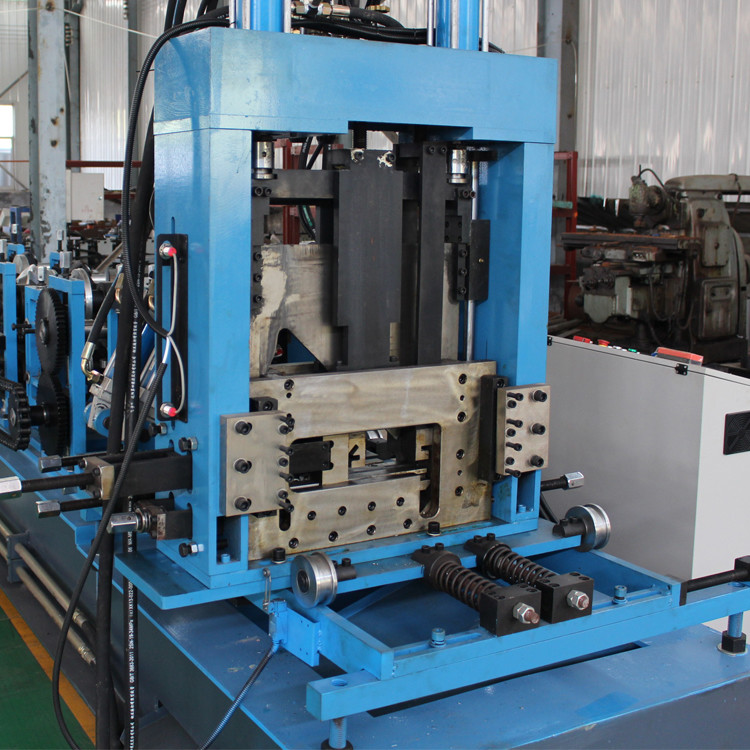

Fly Saw Cutting Automatic C Purlin Roll Forming Machine C Z Purlin
Forming Machine
Fully Automatic CZ Purlin Roll Forming Machine For Size Adjustment
80-300mm
Fully Automatic CZ Purlin Roll Forming Machine For Size Adjustment
80-300mm.Standard Shape Profile ( Also can be customized)
C Purlin: A=80-300mm ; B=40-80mm ; C=10-20mm ; T=1.5-3mm
Z Purlin: A=120-300mm ; B=40-80mm ; C=10-20mm ; T=1.5-3mm
Other detailes of interchange cz cold rolled purlins machine
Suitable for material with thickness 1-3mm,Shafts manufactured from
45#,Main shaft diameter=φ80mm,precision machined,
Motor driving,Gear chain transmission, 16 rollers to form and 7
rollers for straightening and levelling,Main motor=22KW , Frequency
speed control. Forming speed approx.18m/minPLC Control System Omron
(Touch screen: WUXI xinjie),Inverter brand:Taiwan DELTA,Encoder
brand:Japan OMRON),It takes only 5-10 minutes to finish all. No
need to change rollers or spacers or cutters,Combined with: PLC,
Inverter, TouchScreen, Encoder, etc.
specifications
Raw material | Steel Coil gi ppgi |
Control system | PLC(imported Brand) |
Punching | Roller Station |
Roller Station | 18 Stations Roll Forming Machine |
Weight | 11000 kg |
Power | 22KW |
Production Capacity | 20m/min |
Warranty of core components | 1.5 years |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects
for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period
in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after
installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
FAQ
A:- What service can you provide before order?
- About the pre-sale service. We provide you answers of all your
questions on our machines, such as technical parameter, price,
payment terms, etc. If you wanna visit our factory and check the
machines, we also can send you invitation letter and give you our
warmest welcome.
B:- Can you finish the machine during the delivery time?
- We will finish the machine in time according to determined lead
time.
C:- Can you provide some spare parts?
- Yes, of course. The quick-wear parts are sent to you together
with the machine.
D:- What is the after- sale service?
- About the after-sales service. We can send technician to your
country to fix the machine. The buyer should bear all the cost
including: visa, Round trip ticket and suitable accommodation, also
buyer should pay the salary 100USD/day.
The warranty is one year. and we will provide the technical support
for the whole life. It is free to maintain the machine the
first year after buying, including changing the main components.
The first year hence, you will pay for our technician $100 per
day to maintain the machine. And the components are not free, if
you need to get it from us.
E:- Any other service?
- We can manufacture, design, installation and debug various roll
forming machines including standard and customized machines.
It is free to assemble machine and train your works, but the buyer
should pay for the round-trip airplane ticket, and arrange
accommodation during that time.
F:- Can you accept OEM?
- We can accept OEM.
G:- Any certification:
- Yes, we have CE TUV BV certification.
